0 875 107 | Hengstler
Panel-mount pulse counter, 0 875 107
Order No.: 30K384
EAN: 4099891454876
MPN:
0 875 107
Unit Price (€ / pc.)
80.8486 € *
Standard delivery time from the manufacturer is: 2 Weeks

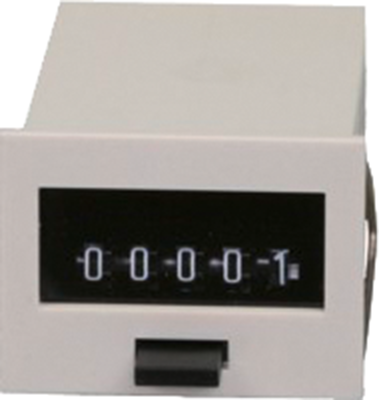

Panel pulse counters, type Hengstler 0875.
5-digit, with reset key (zero reset), tension spring fastener and plastic front-panel cap. Operation; depending on the type: 12 V and 24 VDC, as well as 230 VAC. Connection: 2.8 x 0.8 mm tab terminal. Dimensions: W 41.5, H 31, D 64.2 mm. Weight: approx. 100 g.
Type: 0875.107, 24 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Counting frequency | 10 Hz | |
| Pulse duration | 50 ms | |
| Voltage | 230 VAC | |
| Width | 41.5 mm | |
| Height | 31 mm | |
| Installation depth | 64.2 mm | |
| Assembly | built-in mounting | |
| Connection | faston plug | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90291000 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
