0 772 111 | Hengstler
Panel-mount multi-function counter, 0 772 111
Order No.: 30K5264
EAN: 4099891455330
MPN:
0 772 111
Unit Price (€ / pc.)
226.2785 € *
Standard delivery time from the manufacturer is: 3 Weeks

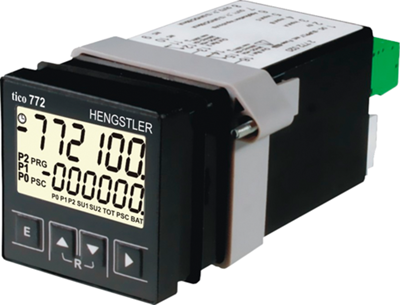

Panel multifunctional counters, type Hengstler Tico 772.

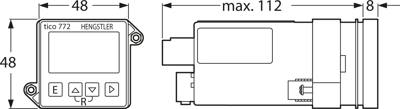

Universal use as tachometer and time/shift/stack/preset counter; Display: reflective LCD, 2 lines, 6 digits. Numeral height line 1/line 2: 9.3/7.2 mm. Signal times: can be programmed separately up to 599.99 seconds. Counting frequency: max. 60 kHz (single-channel count). Duty cycle: 100 %. Value retention: non-volatile memory, approx.10 years. Degree of protection: front/connections: IP 65/20. Safety class: II, EN/IEC 61010-1. Ambient temperatures: 0 to +50 °C. DIN dimension: 48 x 48 mm. Mounting cutout: 45 x 45 mm. Weight: approx. 200 g.
Technical attributes (type, supply voltage, outputs): 0 772 111, 24 VAC, 1 relays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 48 mm | |
| Degree of protection (IP) | IP65 | |
| Assembly | built-in mounting | |
| Width | 48 mm | |
| Voltage | 230 VAC | |
| Counting frequency | 60 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90291000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
