0 634 810 | Hengstler
Panel-mount pulse counter, 0 634 810
Order No.: 30K4174
EAN: 4099891455095
MPN:
0 634 810
Unit Price (€ / pc.)
40.2934 € *
Standard delivery time from the manufacturer is: 3 Weeks
Panel pulse counters, type Hengstler 634.
For PCB mounting. With high level of EMI protection Without reset function. Machine-solderable, wash-proof; Mounting position: horizontal scrolling display. Power consumption: 50 to 440 mW. Voltage tolerance: ±10 %. Count rate: max. 10 pps. Pulse duration: min. 50 ms. Duty cycle: 100 %. Operating temperatures: –10 to +50 °C. Number of digits: 6. Digit height: 4.0 mm. Useful life: 10 million pulses. Magnetic influence: at 100 kA/m (PTB), insensitive to disturbance.
With bezel, vertical, type 0634.8.
Degree of protection: case IP 40 (snap-mount in switchboard)
Type: 0 634 810, 24 VDC, 335 + Ron state 1.0 kohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Counting frequency | 10 Hz | |
| Pulse duration | 50 ms | |
| Degree of protection (IP) | IP65 | |

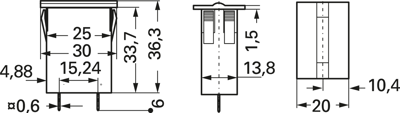

| Installation depth | 32.15 mm | |
| Voltage | 24 VDC | |
| Width | 25.2 mm | |
| Assembly | built-in mounting | |
| Height | 13.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SK |
| Customs tariff number | 90291000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
