0 529 177 | Hengstler

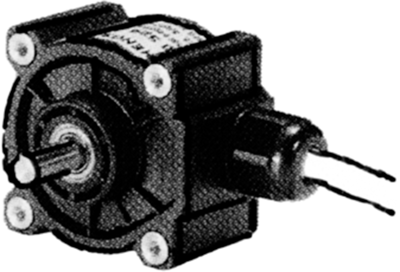

Incremental encoders, type Hengstler RI 38.

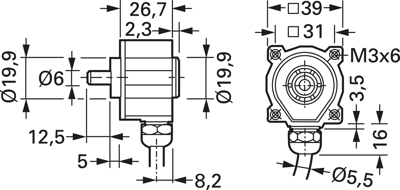

For universal mounting or front/rear panel mounting, smooth operation thanks to ball bearings and low torque; shaft diameter: 6.0 mm, shaft load limit: 10 N radial, 5.0 N axial, max. 10000 rpm, torque: 0.2 N/cm. Degree of protection: IP 50. Operating temperatures: –10 to +60 °C. Connection type: 1.5-m radial cable, package made of glass fiber-reinforced plastic. Weight: 60 g.

Push-pull mode 5.0 VDC ±10 %, type RI 38-0/.

Technical attributes (type, resolution or number of measurement steps (divisions) within a measurement range): 1000AQ.11DB, resolution 1000
