34159 | HELUKABEL
Fire alarm cable, 16-wire, JE-H(St)H, 8 x 2 x 0.8 mm, red, 34159
Unit Price (€ / mtr.)
9.0202 € *
Standard delivery time from the manufacturer is: 6 Weeks

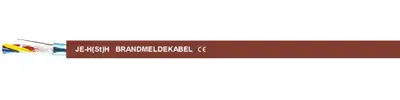

Fire alarm cable, 34159, HELUKABEL
The 34159 is a static screened installation cable for telecommunication purposes. The static screen prevents strong interference impulse. Suitable for fixed installation everywhere, where in case of fire human life and material assets are to be protected and a safety conciousness take a special significance, e. g. in industrial complexes, public buildings, hotels, airports, under ground railway networks, hospitals.
Technical specifications
| Core insulation material | polymer | |
| Colour | red | |
| Number of cores | 16 | |
| Outer diameter | 11.4 mm | |
| Halogen free | Yes | |
| Cable structure | 8 x 2 x 0.8 mm | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
