34158 | HELUKABEL

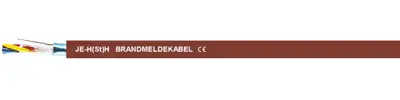

Fire alarm cable, 8-wire, JE-H(St)H, 4 x 2 x 0.8 mm, red, 34158
Unit Price (€ / mtr.)
4.1412 € *
Standard delivery time from the manufacturer is: 6 Weeks
Fire alarm cable, 34158, HELUKABEL
The 34158 is a static screened installation cable for telecommunication purposes. The static screen prevents strong interference impulse. Suitable for fixed installation everywhere, where in case of fire human life and material assets are to be protected and a safety conciousness take a special significance, e. g. in industrial complexes, public buildings, hotels, airports, under ground railway networks, hospitals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 8 | |
| Halogen free | Yes | |
| Core insulation material | polymer | |
| Cable material | copper, bright | |
| Colour | red | |
| Outer diameter | 9.3 mm | |
| Cable structure | 4 x 2 x 0.8 mm | |
| Temperature range (active) | -5 °C to 50 °C | |
| Temperature range (unmoved) | -30 °C to 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
