34116 | HELUKABEL

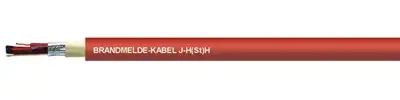

Fire alarm cable, 4-wire, J-H(ST)H, 2 x 2 x 0.8 mm, red, 34116
Unit Price (€ / mtr.)
1.0353 € *
Available in 5 Days: 500 mtr. - if ordered today
Installation cable, 34116, HELUKABEL
The halogen-free installation cable with improved characteristics in the case of fire is used for the telephone transmission, measurement and control technology. The static screen protects the transmission circuits against outer electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. This cable is preferably used for telecommunication installations in dry and damp premises, and in or under plaster.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C | |
| Number of cores | 4 | |
| Cable material | copper, bright | |
| Outer diameter | 6.8 mm | |
| Cable structure | 2 x 2 x 0.8 mm | |
| Halogen free | Yes | |
| Colour | red |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
