34092 | HELUKABEL

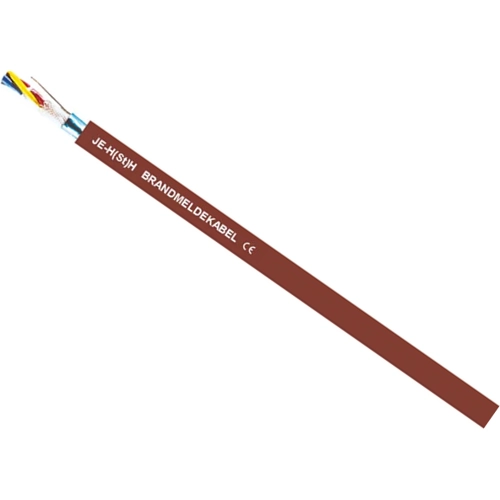

Fire alarm cable, 8-wire, JE-H(St)H, 4 x 2 x 0.8 mm, red, 34092
Unit Price (€ / mtr.)
5.6049 € *
Standard delivery time from the manufacturer is: 6 Weeks
Fire alarm cable, 34092, HELUKABEL
The 34092 is a static screened installation cable for telecommunication purposes. The static screen prevents strong interference impulse. Suitable for fixed installation everywhere, where in case of fire human life and material assets are to be protected and a safety conciousness take a special significance, e. g. in industrial complexes, public buildings, hotels, airports, under ground railway networks, hospitals.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable material | copper, bright | |
| Number of cores | 8 | |
| Core insulation material | polymer | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C | |
| Cable structure | 4 x 2 x 0.8 mm | |
| Outer diameter | 10.8 mm | |
| Colour | red | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
