34061 | HELUKABEL

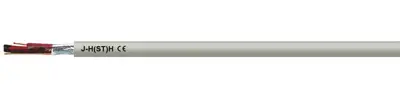

Sheathed line, 4-wire, J-H(ST)H, 2 x 2 x 0.8 mm, gray, 34061
Unit Price (€ / mtr.)
1.0472 € *
Available in 5 Days: 1,000 mtr. - if ordered today
Installation cable, 34061, HELUKABEL
The halogen-free installation cable with improved characteristics in the case of fire is used for the telephone transmission, measurement and control technology. The static screen protects the transmission circuits against outer electrical interferences. A fire propagation is prevented through high oxygen index of the insulation material and produce no corrosive gases in case of fire. This cable is preferably used for telecommunication installations in dry and damp premises, and in or under plaster.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Cable material | copper, bright | |
| Number of cores | 4 | |
| Temperature range (active) | -5 °C to 50 °C | |
| Halogen free | Yes | |
| Outer diameter | 6.5 mm | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Cable structure | 2 x 2 x 0.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
