33105 | HELUKABEL

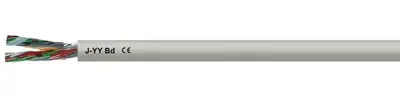

Telephone cable, 40-wire, J-YY Bd, 20 x 2 x 0.6 mm, gray, PVC, 33105

Order No.: 93F8113
EAN: 4060892261817
MPN:
33105
Series: J-YY Bd
33105 HELUKABEL Telecommunication Cables
Image may differ
Unit Price (€ / mtr.)
3.6533 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
365.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
3.6533 €

Telephone installation cable, 33105, HELUKABEL

J-YY installation cable is preferably used as telephone cables in telephone stations and sub-extensions,in dry and damp premises, and in or under plaster, in the open air for fixed installation. Telephone-Installation cable is not allowed for purposes of high current and power installation.

Technical specifications
Core insulation material PVC
Colour gray
Number of cores 40
Outer diameter 11 mm
Halogen free No
Cable structure 20 x 2 x 0.6 mm
Material PVC
Cable material copper, bright
Temperature range (unmoved) -30 °C to 70 °C
Temperature range (active) -5 °C to 50 °C
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
