33103 | HELUKABEL

Telephone cable, 20-wire, J-YY Bd, 10 x 2 x 0.6 mm, gray, PVC, 33103

Order No.: 93F8112
EAN: 4060892261794
MPN:
33103
Series: J-YY Bd
33103 HELUKABEL Telecommunication Cables
Image may differ
Unit Price (€ / mtr.)
1.9278 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
192.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.9278 €

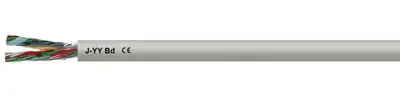

Telephone installation cable, 33103, HELUKABEL

J-YY installation cable is preferably used as telephone cables in telephone stations and sub-extensions,in dry and damp premises, and in or under plaster, in the open air for fixed installation. Telephone-Installation cable is not allowed for purposes of high current and power installation.

Technical specifications
Filter Property Value
Core insulation material PVC
Number of cores 20
Temperature range (active) -5 °C to 50 °C
Halogen free No
Material PVC
Cable structure 10 x 2 x 0.6 mm
Temperature range (unmoved) -30 °C to 70 °C
Cable material copper, bright
Colour gray
Outer diameter 8.5 mm
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
