33042 | HELUKABEL
Fire alarm cable, 20-wire, J-Y(St)Y Lg, 10 x 2 x 0.8 mm, red, PVC, 33042
Unit Price (€ / mtr.)
3.1416 € *
Standard delivery time from the manufacturer is: 6 Weeks

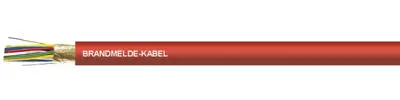

Fire detection cable, 33042, HELUKABEL
This cable type with electrostatic screening (St) protects the transmission circuits against extern electrical interferences. The installation cable laid up in pairs is preferably used for telecommunication installation in dry and damp premises, and in or under plaster, in the open air for fixed installation. This cable is suitable for telephone stations and sub-extensions, for signal and data transmission.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | red | |
| Core insulation material | PVC | |
| Temperature range (active) | -5 °C to 50 °C | |
| Cable structure | 10 x 2 x 0.8 mm | |
| Halogen free | No | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Number of cores | 20 | |
| Outer diameter | 13.2 mm | |
| Material | PVC | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
