33037 | HELUKABEL

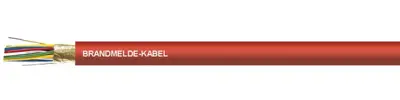

Fire alarm cable, 6-wire, J-Y(St)Y Lg, 3 x 2 x 0.8 mm, red, PVC, 33037
Unit Price (€ / mtr.)
1.4518 € *
Standard delivery time from the manufacturer is: 6 Weeks
Fire detection cable, 33037, HELUKABEL
This cable type with electrostatic screening (St) protects the transmission circuits against extern electrical interferences. The installation cable laid up in pairs is preferably used for telecommunication installation in dry and damp premises, and in or under plaster, in the open air for fixed installation. This cable is suitable for telephone stations and sub-extensions, for signal and data transmission.
Technical specifications
| Core insulation material | PVC | |
| Colour | red | |
| Number of cores | 6 | |
| Outer diameter | 8.5 mm | |
| Halogen free | No | |
| Cable structure | 3 x 2 x 0.8 mm | |
| Material | PVC | |
| Cable material | copper, bright | |
| Temperature range (unmoved) | -30 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
