33003 | HELUKABEL

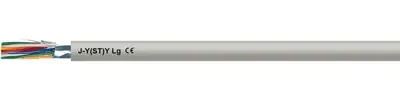

Telephone cable, 8-wire, J-Y(ST)Y, 4 x 2 x 0.6 mm, gray, PVC, 33003
Unit Price (€ / mtr.)
0.7616 € *
Standard delivery time from the manufacturer is: 6 Weeks
Telephone cable, 33003, HELUKABEL
This cable type with electrostatic screening (St) protects the transmission circuits against extern electrical interferences. Installation cables laid up in pairs are preferably used for telecommunications installations, in dry and damp premises, and in or under plaster, in the open air for fixed installation. This cable is suitable for telephone stations and sub-extensions, for signal and data transmission. Telephone-Installation cables are not allowed for purposes of high current and power installation.
Technical specifications
Colour | gray | |
Halogen free | No | |
Core insulation material | PVC | |
Temperature range (unmoved) | -30 °C to 70 °C | |
Temperature range (active) | -5 °C to 50 °C | |
Number of cores | 8 | |
Cable structure | 4 x 2 x 0.6 mm | |
Outer diameter | 6.5 mm | |
Material | PVC | |
Cable material | copper, bright |
Download
Logistics
Customs tariff number | 85444995 |
Compliance
RoHS conform | Yes |
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
