45152 | HELUKABEL

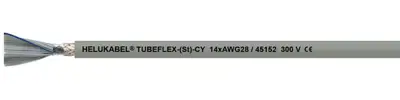

Flat ribbon cable in round form, 14 pole, pitch 1.27 mm, 0.09 mm², AWG 28, PVC, gray, 45152
Unit Price (€ / mtr.)
17.9095 € *
Available in 5 Days: 2,100 mtr. - if ordered today
Ribbon cable, 45152, HELUKABEL
The 45152 is a flat ribbon cable, due to its roundshape offers considerable advantages compared with other flat ribbon cables during the installation and assembly. This roundshaped cable bids enormous profits by using the quick and economical possibilities under continuance with the efficient connection in IDC-technique. All conductors can be contacted at one working procedure without stripping the insulation. The accurate to size pitch-image of the ribbon cable is obtained due to an adapted backshaping before the plug installation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.27 mm | |
| Halogen free | No | |
| Colour | gray | |
| Test voltage | 2 kV | |
| Cable cross-section | 0.09 mm² | |
| Outer diameter | 7.2 mm | |
| Version | flat ribbon cable in round form | |
| AWG cross-section | AWG 28 | |
| Number of cores | 14 | |
| Rated voltage | 300 V | |
| Width | 17.78 mm | |
| Temperature range (unmoved) | -20 °C to 80 °C | |
| Shielding | shielded | |
| Core insulation material | PVC | |
| Cable material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
