920383 | HELUKABEL

Corrugated hose, inside Ø 91 mm, outside Ø 106 mm, BR 210 mm, PUR, black, 920383

Order No.: 93F7366
EAN: 4060892380464
MPN:
920383
Series: JUMBO PUR
920383 HELUKABEL Protective Tubes

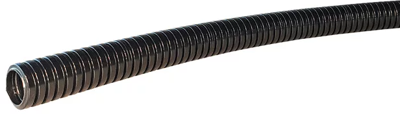

Image may differ
Unit Price (€ / mtr.)
41.0669 € *
Available in 5 Days: 20 mtr. - if ordered today
Total Price:
410.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 mtr.
41.0669 €

Corrugated tube, 920383, HELUKABEL

The 920383 is a cable protection tube for maximum duty robot applications with high abrasion resistance and lowest reset quality. This product is resistant to: fuels, mineral oils, greases, weak bases, weak acids.

Features

  • Halogen-free
  • Cadmium-free

Applications

  • Robotics
  • Handling systems
  • Vehicle construction and shipbuilding
  • Drag chains
  • Oversize corrugated tubes
Technical specifications
Colour black
Outer diameter 106 mm
Flame-retardant Yes
Bending radius 210 mm
min. operating temperature -40 °C
Material PUR
max. operating temperature 125 °C
Inner diameter 91 mm
Nominal width 95 mm
Logistics
Customs tariff number 39173300
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
