920382 | HELUKABEL

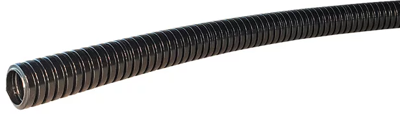

Corrugated hose, inside Ø 66.5 mm, outside Ø 79.2 mm, BR 160 mm, PUR, black, 920382

Order No.: 93F7365
EAN: 4060892380457
MPN:
920382
Series: JUMBO PUR
920382 HELUKABEL Protective Tubes
Image may differ
Unit Price (€ / mtr.)
28.4886 € *
Available in 5 Days: 180 mtr. - if ordered today
Total Price:
284.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 mtr.
28.4886 €

Corrugated tube, 920382, HELUKABEL

The 920382 is a cable protection tube for maximum duty robot applications with high abrasion resistance and lowest reset quality. This product is resistant to: fuels, mineral oils, greases, weak bases, weak acids.

Features

  • Halogen-free
  • Cadmium-free

Applications

  • Robotics
  • Handling systems
  • Vehicle construction and shipbuilding
  • Drag chains
  • Oversize corrugated tubes
Technical specifications
Colour black
Outer diameter 79.2 mm
Flame-retardant Yes
Bending radius 160 mm
min. operating temperature -40 °C
Material PUR
max. operating temperature 125 °C
Inner diameter 66.5 mm
Nominal width 70 mm
Logistics
Customs tariff number 39173300
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
