91362 | HELUKABEL

Corrugated hose, inside Ø 66.5 mm, outside Ø 79.2 mm, BR 200 mm, PA, black, 91362

Order No.: 93F7362
EAN: 4060892380167
MPN:
91362
Series: JUMBO PA6
91362 HELUKABEL Protective Tubes
Image may differ
Unit Price (€ / mtr.)
19.2423 € *
Available in 5 Days: 100 mtr. - if ordered today
Total Price:
192.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 mtr.
19.2423 €

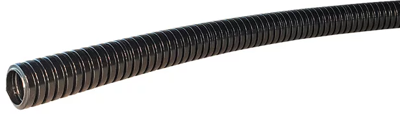

Corrugated tube, 91362, HELUKABEL

The 91362 is a cable protection tube for medium to heavy-duty applications. This product is resistant to: fuels, mineral oils, greases, weak bases, weak acids.

Features

  • Halogen-free
  • Cadmium-free

Applications

  • Machine and plant construction
  • Robotics
  • Automation technology
  • Vehicle construction and shipbuilding
  • Railway technology
  • Installation technology
  • Control cabinet construction
Technical specifications
Colour black
Outer diameter 79.2 mm
Flame-retardant Yes
Bending radius 200 mm
min. operating temperature -40 °C
Material PA
max. operating temperature 140 °C
Inner diameter 66.5 mm
Nominal width 70 mm
Logistics
Customs tariff number 39173300
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
