78948 | HELUKABEL

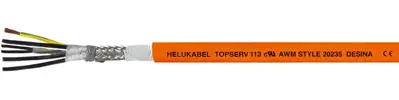

PUR servo line TOPSERV 113 PUR 6 x 4G1.5 mm² + (2 x 1.5 mm²), AWG 16, shielded, orange, 78948

Order No.: 93F7033
EAN: 4060892148101
MPN:
78948
Series: TOPSERV 113 PUR
78948 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
20.4323 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2,043.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
20.4323 €

Drag chain cable, 78948, HELUKABEL

The 78948 is a special PUR drag chain cable for the braking function and the thermal protection in this cable is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high-quality, reliable and long-lasting cables. This requirement is met to a high degree by this cable. The cable has an additional overall screen to ensure EMC compatibility, i.e. for protection against electromagnetic interference.

Technical specifications
Filter Property Value
Colour orange
Number of cores 6
Outer diameter 11.6 mm
AWG cross-section AWG 16
Test voltage 4 kV
Rated voltage UL/CSA 1000 V
Halogen free Yes
Cable cross-section 4G1.5 mm² + (2 x 1.5 mm²)
Version servo line
Material PUR
Shielding shielded
Rated voltage U0 600 V
Temperature range (unmoved) -40 °C to 90 °C
Temperature range (active) -30 °C to 80 °C
Rated voltage 1000 V
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
