707390 | HELUKABEL

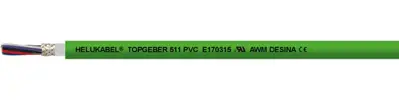

PVC encoder cable TOPGEBER 511 PVC 16 x 3 x (2 x 0.14 mm²) + 4 x 0.14 mm² + 4 x 0.25 mm² + 2 x 0.5 mm², shielded, green, 707390
Unit Price (€ / mtr.)
8.8774 € *
Standard delivery time from the manufacturer is: 6 Weeks
Feedback cable, 707390, HELUKABEL
The 707390 is a special PVC feedback cable low cost alternativ to Motorcables with PUR Sheath for fix instalation or occasional moving applications. This position feedback cable transmit the control pulses for positioning and operating characteristics of servomotors. This cable is used as connecting cables for tachos, brakes and pulse generators in industrial equipment, machine tools, control and automation equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PVC | |
| Version | encoder cable | |
| Conductor category | CL.6 = finest stranded | |
| Number of cores | 16 | |
| Shielding | shielded | |
| Core insulation material | polypropylene | |
| Test voltage | 1.5 kV | |
| Cable cross-section | 3 x (2 x 0.14 mm²) + 4 x 0.14 mm² + 4 x 0.25 mm² + 2 x 0.5 mm² | |
| Temperature range (unmoved) | -20 °C to 80 °C | |
| Temperature range (active) | 0 °C to 60 °C | |
| Outer diameter | 9.6 mm | |
| Colour | green | |
| Rated voltage | 30 V | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
