707077 | HELUKABEL

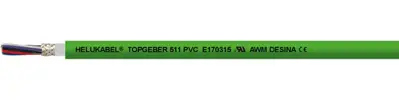

PVC encoder cable TOPGEBER 511 PVC 8 x 3 x (2 x 0.14 mm²) + (2 x 0.5 mm²), shielded, green, 707077
Unit Price (€ / mtr.)
8.33 € *
Available in 5 Days: 100 mtr. - if ordered today
Feedback cable, 707077, HELUKABEL
The 707077 is a special PVC feedback cable low cost alternativ to Motorcables with PUR Sheath for fix instalation or occasional moving applications. This position feedback cable transmit the control pulses for positioning and operating characteristics of servomotors. This cable is used as connecting cables for tachos, brakes and pulse generators in industrial equipment, machine tools, control and automation equipment.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 8 | |
| Rated voltage | 300 V | |
| Version | encoder cable | |
| Cable cross-section | 3 x (2 x 0.14 mm²) + (2 x 0.5 mm²) | |
| Test voltage | 1.5 kV | |
| Temperature range (unmoved) | -20 °C to 80 °C | |
| Material | PVC | |
| Outer diameter | 9.3 mm | |
| Core insulation material | polypropylene | |
| Colour | green | |
| Conductor category | CL.6 = finest stranded | |
| Temperature range (active) | 0 °C to 60 °C | |
| Shielding | shielded | |
| Halogen free | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
