53350 | HELUKABEL

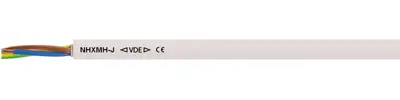

Polymer installation line NHXMH-J 3 x 1.5 mm², AWG 16, unshielded, gray, 53350

Order No.: 93F6764
EAN: 4060892260469
MPN:
53350
Series: NHXMH-J
53350 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
1.3566 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
135.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.3566 €

Installation cable, 53350, HELUKABEL

The 53350 is a halogen-free installation cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.

Technical specifications
Filter Property Value
Material polymer
Cable material copper, bright
Version installation line
Conductor category CL.1 = stranded
Number of cores 3
Shielding unshielded
Core insulation material XLPE
Test voltage 2 kV
Cable cross-section 1.5 mm²
Temperature range (unmoved) -30 °C to 70 °C
Rated voltage U0 300 V
Protective conductor available No
Outer diameter 9.6 mm
Colour gray
Rated voltage 500 V
Halogen free Yes
AWG cross-section AWG 16
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
