53307 | HELUKABEL

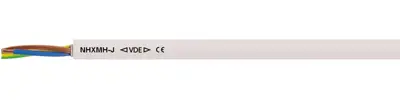

Polymer installation line NHXMH-J 2 x 2.5 mm², AWG 14, unshielded, gray, 53307

Order No.: 93F6775
EAN: 4060892260445
MPN:
53307
Series: NHXMH-J
53307 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
1.5708 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
157.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
1.5708 €

Installation cable, 53307, HELUKABEL

The 53307 is a halogen-free installation cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.

Technical specifications
Core insulation material XLPE
Colour gray
Number of cores 2
Protective conductor available No
Outer diameter 10.1 mm
AWG cross-section AWG 14
Test voltage 2 kV
Halogen free Yes
Cable cross-section 2.5 mm²
Version installation line
Material polymer
Cable material copper, bright
Shielding unshielded
Rated voltage U0 300 V
Temperature range (unmoved) -30 °C to 70 °C
Conductor category CL.1 = stranded
Rated voltage 500 V
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
