53300 | HELUKABEL

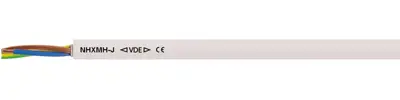

Polymer installation line NHXMH-J 1 x 1.5 mm², AWG 16, unshielded, gray, 53300

Order No.: 93F6773
EAN: 4060892260377
MPN:
53300
Series: NHXMH-J
53300 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
0.714 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
71.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
0.714 €

Installation cable, 53300, HELUKABEL

The 53300 is a halogen-free installation cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.

Technical specifications
Filter Property Value
Number of cores 1
Rated voltage U0 300 V
Rated voltage 500 V
Version installation line
Cable cross-section 1.5 mm²
Test voltage 2 kV
Temperature range (unmoved) -30 °C to 70 °C
Protective conductor available No
Cable material copper, bright
Material polymer
Outer diameter 8.4 mm
AWG cross-section AWG 16
Core insulation material XLPE
Colour gray
Conductor category CL.1 = stranded
Shielding unshielded
Halogen free Yes
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
