53122 | HELUKABEL
PO high current stranded cable N2XH 3 G 2.5 mm², unshielded, black, 53122
Unit Price (€ / mtr.)
2.4276 € *
Standard delivery time from the manufacturer is: 6 Weeks

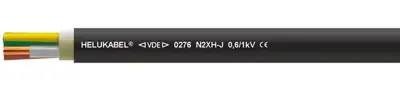

Power cable, 53122, HELUKABEL
Halogen-free power cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in power stations, industrial installations, communal establishments, hotels, airports, underground stations, railway stations, hospitals department stores, banks, schools theaters, multi-storey buildings, process control centres etc. Suitable for fixed installation in dry, damp or wet environments, in, above, on and beneath plaster as well as in masonary walls and in concrete. This cable is suitable for outdoor applications and in underground by using in conduits or tubes.
Features
- Halogen-free, no separation of corrosive or toxic gases
- Limited propagation of fire
- Low smoke development
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of cores | 3 | |
| Colour | black | |
| Cable material | copper, bright | |
| Core insulation material | XLPE | |
| Test voltage | 4 kV | |
| Cable cross-section | 2.5 mm² | |
| Material | PO | |
| Shielding | unshielded | |
| Protective conductor available | Yes | |
| Outer diameter | 14 mm | |
| Temperature range (active) | -5 °C to 50 °C | |
| Temperature range (unmoved) | -30 °C to 90 °C | |
| Rated voltage | 1 kV | |
| Halogen free | Yes | |
| Version | high current stranded cable | |
| Rated voltage U0 | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
