53100 | HELUKABEL

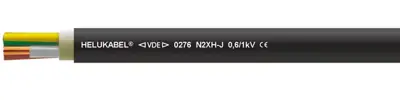

PO high current stranded cable N2XH 1 G 4.0 mm², unshielded, black, 53100

Order No.: 93F8176
EAN: 4060892269233
MPN:
53100
Series: N2XH
53100 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
1.3209 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
132.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.3209 €

Power cable, 53100, HELUKABEL

Halogen-free power cable with enhanced characteristics in case of fire is used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in power stations, industrial installations, communal establishments, hotels, airports, underground stations, railway stations, hospitals department stores, banks, schools theaters, multi-storey buildings, process control centres etc. Suitable for fixed installation in dry, damp or wet environments, in, above, on and beneath plaster as well as in masonary walls and in concrete. This cable is suitable for outdoor applications and in underground by using in conduits or tubes.

Features

  • Halogen-free, no separation of corrosive or toxic gases
  • Limited propagation of fire
  • Low smoke development
Technical specifications
Filter Property Value
Protective conductor available Yes
Temperature range (unmoved) -30 °C to 90 °C
Colour black
Rated voltage U0 600 V
Cable material copper, bright
Number of cores 1
Material PO
Shielding unshielded
Outer diameter 8 mm
Rated voltage 1 kV
Temperature range (active) -5 °C to 50 °C
Test voltage 4 kV
Halogen free Yes
Version high current stranded cable
Core insulation material XLPE
Cable cross-section 4.0 mm²
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
