43050 | HELUKABEL

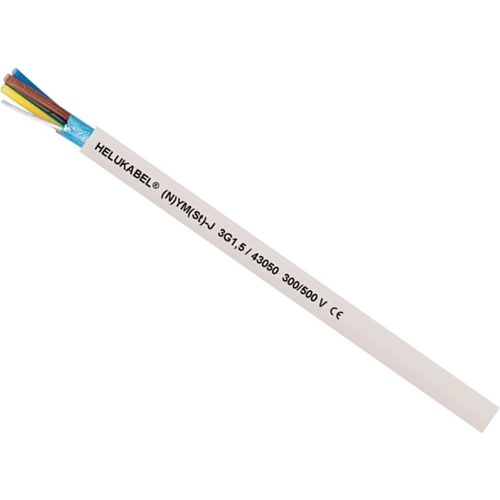

PVC installation line (N)YM(St)-J 3 G 1.5 mm², AWG 16, shielded, gray, 43050

Order No.: 93F6546
EAN: 4060892259692
MPN:
43050
Series: (N)YM(St)-J
43050 HELUKABEL Other Cables and Wires
Image may differ
Unit Price (€ / mtr.)
1.7850 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
178.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.7850 €

Installation cable, 43050, HELUKABEL

The 43050 is a PVC installation cable with static screen, designed for the effective limitation of electromagnetic interference fields. The design proves to be advantageous for installation in the computer sector, in hospitals, in industrial control rooms with interference-sensitive devices as well as in living areas of people that are extremely sensitive to radiation. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Also suitable for outdoor installation as long as the cable is protected against direct sunlight.

Technical specifications
Core insulation material PVC
Colour gray
Number of cores 3
Protective conductor available Yes
Outer diameter 10.5 mm
AWG cross-section AWG 16
Test voltage 2 kV
Halogen free No
Cable cross-section 1.5 mm²
Version installation line
Material PVC
Cable material copper, bright
Shielding shielded
Rated voltage U0 300 V
Temperature range (unmoved) -40 °C to 70 °C
Temperature range (active) -5 °C to 70 °C
Conductor category CL.1 = stranded
Rated voltage 500 V
Logistics
Customs tariff number 85444995
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
