32214 | HELUKABEL
PVC high current stranded cable NYCY 4 x 1.5 mm², AWG 16, black, 32214
Unit Price (€ / mtr.)
3.5224 € *
Available: 100 mtr.
Leadtime: 6 Weeks **
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 mtr.
3.5224 €
10 mtr.
3.1297 €
50 mtr.
2.9393 €
100 mtr.
2.7370 €
*incl. VAT plus shipping costs
**Subject to prior sale

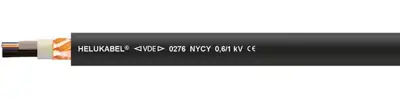

High current stranded cable, 32214, HELUKABEL
The 32214 is a power cable for energy supply is used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test datas. Overall, where increased electrical and also mechanical protection are required. This cable is installed in open air, in underground, in water, in concrete, indoors and in cable ducts.
Technical specifications
| Core insulation material | PVC | |
| Colour | black | |
| Number of cores | 4 | |
| Outer diameter | 14.5 mm | |
| AWG cross-section | AWG 16 | |
| Test voltage | 4 kV | |
| Halogen free | No | |
| Cable cross-section | 1.5 mm² | |
| Version | high current stranded cable | |
| Material | PVC | |
| Cable material | copper, bright | |
| Rated voltage U0 | 600 V | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Temperature range (active) | -5 °C to 50 °C | |
| Conductor category | CL.1 = stranded | |
| Rated voltage | 1000 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
