32209 | HELUKABEL

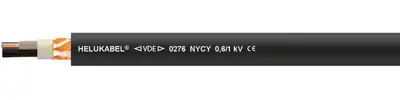

PVC high current stranded cable NYCY 3 x 2.5 mm², AWG 14, black, 32209
Unit Price (€ / mtr.)
2.9988 € *
Standard delivery time from the manufacturer is: 6 Weeks
High current stranded cable, 32209, HELUKABEL
The 32209 is a power cable for energy supply is used for industry and distribution boards, power stations, house connecting boxes and street lighting as well as control cable for the transmission of control impulses and test datas. Overall, where increased electrical and also mechanical protection are required. This cable is installed in open air, in underground, in water, in concrete, indoors and in cable ducts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (active) | -5 °C to 50 °C | |
| Number of cores | 3 | |
| Halogen free | No | |
| Material | PVC | |
| Colour | black | |
| AWG cross-section | AWG 14 | |
| Outer diameter | 14.5 mm | |
| Rated voltage | 1000 V | |
| Test voltage | 4 kV | |
| Cable material | copper, bright | |
| Core insulation material | PVC | |
| Conductor category | CL.1 = stranded | |
| Version | high current stranded cable | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage U0 | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
