32004 | HELUKABEL

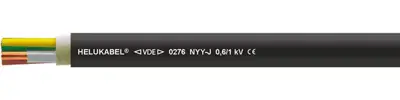

PVC earth cable NYY-J 1 x 16 mm², AWG 6, unshielded, black, 32004
Unit Price (€ / mtr.)
3.2011 € *
Available: 100 mtr.
Available in 5 Days: 3,000 mtr. - if ordered today
Earth cable, 32004, HELUKABEL
The 32004 is a power cable for energy supply is installed in open air, in underground, in water, in concrete, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Conductor category | CL.1 = stranded | |
| Core insulation material | PVC | |
| Rated voltage U0 | 600 V | |
| Halogen free | No | |
| Outer diameter | 11 mm | |
| Material | PVC | |
| Number of cores | 1 | |
| Test voltage | 4 kV | |
| Rated voltage | 1 kV | |
| Cable material | copper, bright | |
| Cable cross-section | 16 mm² | |
| Colour | black | |
| Temperature range (active) | -5 °C to 50 °C | |
| Shielding | unshielded | |
| Version | earth cable | |
| Temperature range (unmoved) | -40 °C to 70 °C | |
| AWG cross-section | AWG 6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
