713569 | HELUKABEL

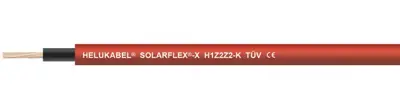

XLPO-photovoltaic cable, halogen free, SOLARFLEX-X H1Z2Z2-K, 6.0 mm², AWG 10, red, outer Ø 6.4 mm, 713569
Unit Price (€ / mtr.)
2.4514 € *
Available: 100 mtr.
Available in 5 Days: 400 mtr. - if ordered today
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4514 €
10 mtr.
2.1658 €
50 mtr.
1.9635 €
100 mtr.
1.6660 €
500 mtr.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale
Solar cable, 713569, HELUKABEL
The 713569 is a cross-linked single core cable used for wiring solar modules. Suitable for direct burial; recommendation: laying in pipes. Not suitable for permanent installation in water. The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The cable is suitable for use in and on devices and systems with protective insulation (protection class II).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 6.0 mm² | |
| AWG cross-section | AWG 10 | |
| Product type | photovoltaic cable | |
| Core insulation material | XLPO | |
| Test voltage | 6.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Colour | red | |
| Rated voltage | 1000 V | |
| Halogen free | Yes | |
| Outer diameter | 6.4 mm | |
| Rated voltage U0 | 1000 V | |
| Cable material | copper, tin-plated | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
