713531 | HELUKABEL
XLPO-photovoltaic cable, halogen free, SOLARFLEX-X H1Z2Z2-K, 6.0 mm², AWG 10, black, outer Ø 6.4 mm, 713531
Unit Price (€ / mtr.)
2.4514 € *
Available: 38 mtr.
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 mtr.
2.4514 €
10 mtr.
2.1658 €
50 mtr.
1.9635 €
100 mtr.
1.6660 €
500 mtr.
1.4756 €
*incl. VAT plus shipping costs
Subject to prior sale

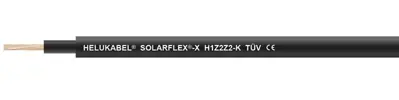

Solar cable, 713531, HELUKABEL
The 713531 is a cross-linked single core cable used for wiring solar modules. Suitable for direct burial; recommendation: laying in pipes. Not suitable for permanent installation in water. The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The cable is suitable for use in and on devices and systems with protective insulation (protection class II).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Rated voltage | 1000 V | |
| AWG cross-section | AWG 10 | |
| Core insulation material | XLPO | |
| Product type | photovoltaic cable | |
| Outer diameter | 6.4 mm | |
| Cable cross-section | 6.0 mm² | |
| Rated voltage U0 | 1000 V | |
| Test voltage | 6.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Halogen free | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85446010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
