69631 | HELUKABEL
PVC-drag chains conductor line, Single 602-RC-CY-.., 10 mm², AWG 8, orange, outer Ø 10 mm, 69631
Unit Price (€ / mtr.)
7.8064 € *
Standard delivery time from the manufacturer is: 6 Weeks

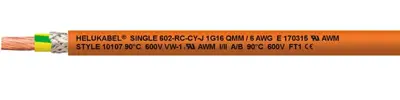

Single core cable, 69631, HELUKABEL
High flexible special single core screened cable for drag chains is used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms. It is designed for exportorientated machinery manufacturer for flexible applications in machineries, machine tools, robot technics, for movable automated machinery parts. This cable is particulary suitable for the interference-free transmission in instrumentation and control engineering applications.
Features
- Largely resistant to oil
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | PVC | |
| AWG cross-section | AWG 8 | |
| Rated voltage UL/CSA | 600 V | |
| Cable material | copper, bright | |
| Colour | orange | |
| Cable cross-section | 10 mm² | |
| Temperature range (active) | -5 °C to 90 °C | |
| Rated voltage U0 | 600 V | |
| Standard number | UL, CSA | |
| Material | PVC | |
| Halogen free | No | |
| Rated voltage | 1 kV | |
| Conductor category | CL.6 = finest stranded | |
| Test voltage | 4 kV | |
| Outer diameter | 10 mm | |
| Product type | drag chains conductor line | |
| Temperature range (unmoved) | -40 °C to 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
