64123 | HELUKABEL

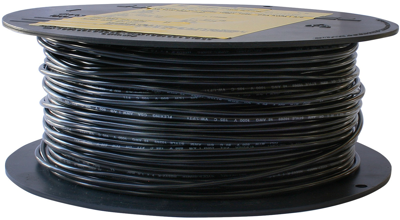

PVC-switching strand, FÜNFNORM H07V2-K, 1.5 mm², AWG 16, black, outer Ø 3.05 mm, 64123
Unit Price (€ / mtr.)
0.6783 € *
Standard delivery time from the manufacturer is: 6 Weeks
Stranded wire, 64123, HELUKABEL
The 64123 is a single core, fine stranded wire insulation made of PVC. Five norms approved connecting jumper wire primarily designed for exportes, used in machine tools. The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
Features
- Flame-retardant
Technical specifications
| Test voltage | 2.5 kV | |
| Rated voltage U0 | 450 V | |
| Rated voltage | 750 V | |
| Temperature range (active) | -5 °C to 90 °C | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| AWG cross-section | AWG 16 | |
| Standard number | HAR, UL-AWM, UL-MTW, CSA-AWM, CSA | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage UL/CSA | 600 V | |
| Core insulation material | PVC | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Outer diameter | 3.05 mm | |
| Colour | black |
Download
Logistics
| Original Packaging | Reel with 152 meters |
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
