63440 | HELUKABEL
PVC-switching strand, FÜNFNORM H07V2-K, 10 mm², AWG 8, white/orange, outer Ø 6.6 mm, 63440
Unit Price (€ / mtr.)
3.6057 € *
Available in 5 Days: 2,280 mtr. - if ordered today

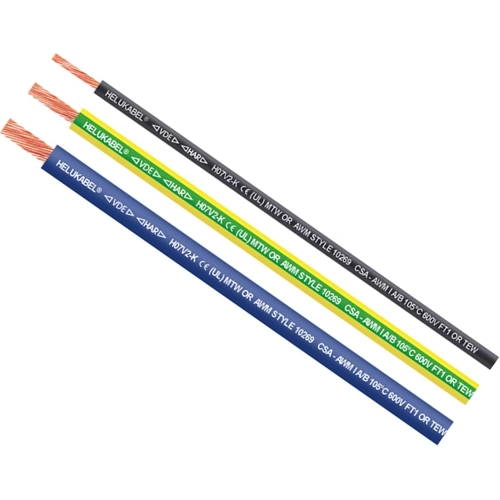

Stranded wire, 63440, HELUKABEL
PVC single core, finely stranded wire. Five norms approved connecting jumper wire primarily designed for exportes, used in machine tools. The approbation of HAR, UL-AWM, UL-MTW, CSA-AWM, CSA-Equipment-wire make possible an economical storekeeping and simplification of parts list.
Features
- Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI3)
- Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, UL-VW-1, CSA FT1
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 6.6 mm | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Halogen free | No | |
| Test voltage | 2.5 kV | |
| Conductor category | CL.5 = fine stranded | |
| Colour | white/orange | |
| Rated voltage | 750 V | |
| Core insulation material | PVC | |
| Cable material | copper, bright | |
| Temperature range (active) | 5 °C to 90 °C | |
| Cable cross-section | 10 mm² | |
| Rated voltage UL/CSA | 600 V | |
| AWG cross-section | AWG 8 | |
| Rated voltage U0 | 450 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
