63415 | HELUKABEL
PVC-switching strand, FÜNFNORM H05V2-K, 1.0 mm², AWG 18, white-orange, outer Ø 2.8 mm, 63415
Unit Price (€ / mtr.)
0.4760 € *
Standard delivery time from the manufacturer is: On Request

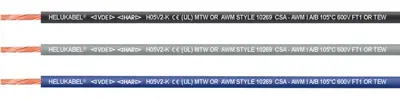

Single core, 63415, HELUKABEL
The 63415 is a PVC single core with five norms connecting jumper wire primarily, designed for exportes, used in machine tools. The approbation of HAR, UL-AWM, UL-MTW, CSA-AWM, CSA-Equipment-wire make possible an economical storekeeping and simplification of parts list.
Technical specifications
| Temperature range (active) | 5 °C to 90 °C | |
| Halogen free | No | |
| Colour | white-orange | |
| AWG cross-section | AWG 18 | |
| Outer diameter | 2.8 mm | |
| Rated voltage | 500 V | |
| Test voltage | 2 kV | |
| Cable material | copper, bright | |
| Core insulation material | PVC | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -40 °C to 90 °C | |
| Cable cross-section | 1.0 mm² | |
| Rated voltage U0 | 300 V |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
