55801 | HELUKABEL

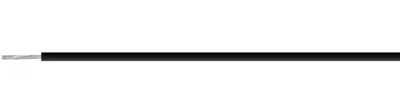

Rubber-switching strand, H07G-K, 16 mm², AWG 6, black, outer Ø 8.9 mm, 55801
Unit Price (€ / mtr.)
7.5565 € *
Available in 5 Days: 500 mtr. - if ordered today
Switching strand, 55801, HELUKABEL
The 55801 is a rubber single core for installation in electrical conduits as well as in open or closed trunking systems. Used for internal wiring of devices and equipment. Must not come into contact with water.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | rubber | |
| Colour | black | |
| Outer diameter | 8.9 mm | |
| AWG cross-section | AWG 6 | |
| Test voltage | 2.5 kV | |
| Halogen free | No | |
| Cable cross-section | 16 mm² | |
| Cable material | copper, tin-plated | |
| Rated voltage U0 | 450 V | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage | 750 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
