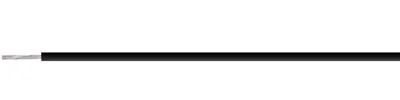

Rubber-switching strand, H07G-K, 10 mm², AWG 8, black, outer Ø 7.6 mm, 55701

Order No.: 93F6635
EAN: 4060892239892
MPN:
55701
Series: H07G-K
55701 HELUKABEL Insulated stranded wires
Image may differ
Unit Price (€ / mtr.)
4.9385 € *
Available in 5 Days: 2,400 mtr. - if ordered today
Total Price:
493.85 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
4.9385 €

Switching strand, 55701, HELUKABEL

The 55701 is a rubber single core for installation in electrical conduits as well as in open or closed trunking systems. Used for internal wiring of devices and equipment. Must not come into contact with water.

Technical specifications
Filter Property Value
Halogen free No
Core insulation material rubber
Outer diameter 7.6 mm
Cable material copper, tin-plated
Rated voltage 750 V
Test voltage 2.5 kV
Conductor category CL.5 = fine stranded
AWG cross-section AWG 8
Colour black
Rated voltage U0 450 V
Cable cross-section 10 mm²
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
