55501 | HELUKABEL

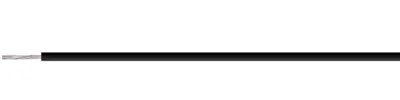

Rubber-switching strand, H07G-K, 4.0 mm², AWG 12, black, outer Ø 5.4 mm, 55501
Unit Price (€ / mtr.)
1.9635 € *
Available in 5 Days: 3,000 mtr. - if ordered today
Switching strand, 55501, HELUKABEL
The 55501 is a rubber single core for installation in electrical conduits as well as in open or closed trunking systems. Used for internal wiring of devices and equipment. Must not come into contact with water.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 | |
| Core insulation material | rubber | |
| Test voltage | 2.5 kV | |
| Colour | black | |
| Halogen free | No | |
| Outer diameter | 5.4 mm | |
| Conductor category | CL.5 = fine stranded | |
| Rated voltage U0 | 450 V | |
| Rated voltage | 750 V | |
| Product type | switching strand | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
