55401 | HELUKABEL

Rubber-switching strand, H07G-K, 2.5 mm², AWG 14, black, outer Ø 4.5 mm, 55401

Order No.: 93F6638
EAN: 4060892239533
MPN:
55401
Series: H07G-K
55401 HELUKABEL Insulated stranded wires

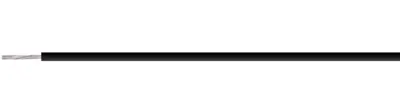

Image may differ
Unit Price (€ / mtr.)
0.9758 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
97.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
0.9758 €

Switching strand, 55401, HELUKABEL

The 55401 is a rubber single core for installation in electrical conduits as well as in open or closed trunking systems. Used for internal wiring of devices and equipment. Must not come into contact with water.

Technical specifications
Filter Property Value
AWG cross-section AWG 14
Core insulation material rubber
Test voltage 2.5 kV
Colour black
Halogen free No
Outer diameter 4.5 mm
Conductor category CL.5 = fine stranded
Rated voltage U0 450 V
Rated voltage 750 V
Product type switching strand
Cable material copper, tin-plated
Cable cross-section 2.5 mm²
Logistics
Property Value
Customs tariff number 85444995
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
