51305 | HELUKABEL

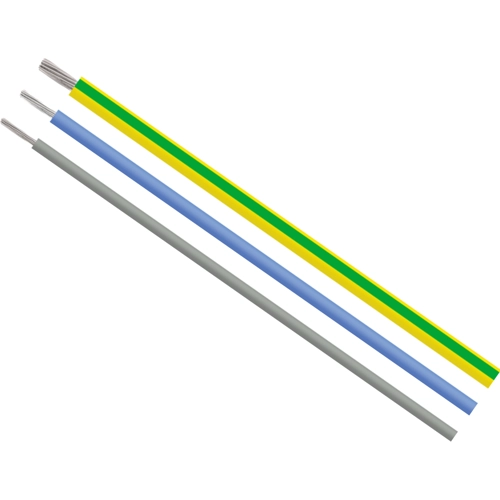

POC-stranded wire, high flexible, halogen free, HELUTHERM 145, 0.75 mm², blue, outer Ø 2.2 mm, 51305
Unit Price (€ / mtr.)
0.8449 € *
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
84.49 € *
Price list
Quantity
Price per unit*
100 mtr.
0.8449 €
500 mtr.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
Stranded wire, 51305, HELUKABEL
The 51305 is a temperature resistant single core for the internal wiring of lighting fixtures, heaters, electrical machinery, switching systems and distributors in industrial equipment as well as plant and machinery construction. It is suitable for laying in tubes, on and under plaster as well as closed installation ducts. Not suitable for direct laying in cable ladders and cable trays. The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
Features
- Halogen-free
- Flame-retardant
- Oil-resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Test voltage | 3.5 kV | |
| Colour | blue | |
| Rated voltage U0 | 300 V | |
| Outer diameter | 2.2 mm | |
| Core insulation material | POC | |
| Temperature range (active) | -35 °C to 120 °C | |
| Cable material | copper, tin-plated | |
| Rated voltage | 500 V | |
| Standard number | VDE 0295 | |
| Conductor category | CL.5 = fine stranded | |
| Temperature range (unmoved) | -55 °C to 145 °C | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
