50894 | HELUKABEL
Switching strand, halogen free, HELUTHERM 400, 10 mm², AWG 8, white, outer Ø 6.8 mm, 50894
Unit Price (€ / mtr.)
46.6361 € *
Standard delivery time from the manufacturer is: 6 Weeks

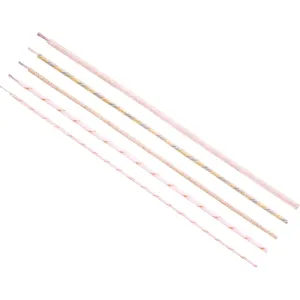

Stranded wire, 50894, HELUKABEL
The 50894 single core stranded wire is especially suited for use in the aviation and aerospace industry, in power stations, in engine design as well as in chemical, steel and metallurgical plants.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 8 | |
| Temperature range (unmoved) | -60 °C to 400 °C | |
| Halogen free | Yes | |
| Conductor category | CL.2 = stranded | |
| Product type | switching strand | |
| Test voltage | 2 kV | |
| Cable material | nickel | |
| Rated voltage | 500 V | |
| Standard number | VDE 0482 | |
| Rated voltage U0 | 300 V | |
| Colour | white | |
| Cable cross-section | 10 mm² | |
| Outer diameter | 6.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
