45902 | HELUKABEL

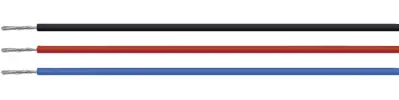

Silicone-switching strand, halogen free, SiFF, 10 mm², red, outer Ø 6.8 mm, 45902
Unit Price (€ / mtr.)
20.5037 € *
Available in 5 Days: 500 mtr. - if ordered today
Total Price:
2,050.37 € *
Price list
Quantity
Price per unit*
100 mtr.
20.5037 €
500 mtr.
19.2185 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicone single core, 45902, HELUKABEL
The 45902 is a special single core for use in high, resp. low temperature areas. It is used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glas and ceramic factories. As this single cores are halogen-free, especially suited for use in power stations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Rated voltage U0 | 300 V | |
| Outer diameter | 6.8 mm | |
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Rated voltage | 500 V | |
| Core insulation material | silicone | |
| Temperature range (active) | -25 °C to 180 °C | |
| Test voltage | 2 kV | |
| Cable cross-section | 10 mm² | |
| Cable material | copper, tin-plated | |
| Colour | red | |
| Conductor category | CL.6 = finest stranded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
