45302 | HELUKABEL

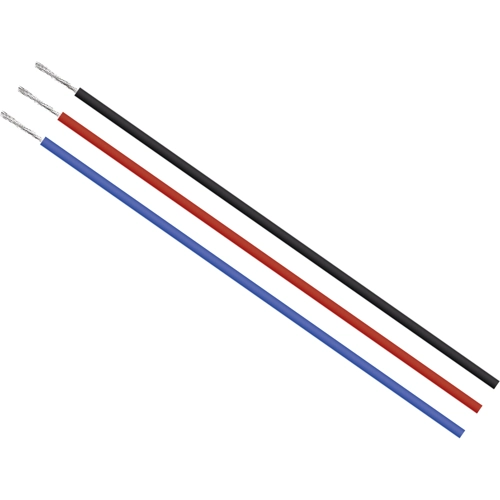

Silicone-stranded wire, highly flexible, halogen free, SiFF, 0.75 mm², red, outer Ø 2.5 mm, 45302
Unit Price (€ / mtr.)
1.9754 € *
Available in 5 Days: 1,600 mtr. - if ordered today
Total Price:
197.54 € *
Price list
Quantity
Price per unit*
100 mtr.
1.9754 €
500 mtr.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicone single core, 45302, HELUKABEL
Special single core for use in high, resp. low temperature areas. It is used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glas and ceramic factories.
Features
- Halogen-free
- High flash point
- Flame-retardant
- Resistant to high molecular oils
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Conductor category | CL.6 = finest stranded | |
| Halogen free | Yes | |
| Standard number | VDE 0250 | |
| Test voltage | 2 kV | |
| Cable material | copper, tin-plated | |
| Core insulation material | silicone | |
| Colour | red | |
| Temperature range (active) | -5 °C to 90 °C | |
| Rated voltage U0 | 300 V | |
| Rated voltage | 500 V | |
| Cable cross-section | 0.75 mm² | |
| Outer diameter | 2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
