45102 | HELUKABEL

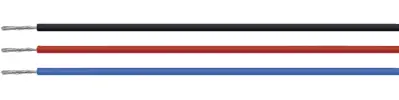

Silicone-switching strand, halogen free, SiFF, 0.25 mm², red, outer Ø 1.9 mm, 45102
Unit Price (€ / mtr.)
1.2257 € *
Available in 5 Days: 800 mtr. - if ordered today
Total Price:
122.57 € *
Price list
Quantity
Price per unit*
100 mtr.
1.2257 €
500 mtr.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale
Silicone single core, 45102, HELUKABEL
The 45102 is a special single core for use in high, resp. low temperature areas. It is used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glas and ceramic factories. As this single cores are halogen-free, especially suited for use in power stations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -60 °C to 180 °C | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Product type | switching strand | |
| Test voltage | 2 kV | |
| Temperature range (active) | -25 °C to 180 °C | |
| Cable material | copper, tin-plated | |
| Rated voltage | 500 V | |
| Core insulation material | silicone | |
| Rated voltage U0 | 300 V | |
| Colour | red | |
| Cable cross-section | 0.25 mm² | |
| Outer diameter | 1.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
