45101 | HELUKABEL
Silicone-switching strand, halogen free, SiFF, 0.25 mm², black, outer Ø 1.9 mm, 45101
Unit Price (€ / mtr.)
1.2257 € *
Available: 100 mtr.
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
122.57 € *
Price list
Quantity
Price per unit*
100 mtr.
1.2257 €
500 mtr.
1.1543 €
*incl. VAT plus shipping costs
Subject to prior sale

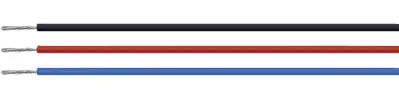

Silicone single core, 45101, HELUKABEL
The 45101 is a special single core for use in high, resp. low temperature areas. It is used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glas and ceramic factories. As this single cores are halogen-free, especially suited for use in power stations.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Core insulation material | silicone | |
| Cable material | copper, tin-plated | |
| Colour | black | |
| Cable cross-section | 0.25 mm² | |
| Temperature range (active) | -25 °C to 180 °C | |
| Rated voltage U0 | 300 V | |
| Halogen free | Yes | |
| Rated voltage | 500 V | |
| Conductor category | CL.6 = finest stranded | |
| Test voltage | 2 kV | |
| Outer diameter | 1.9 mm | |
| Product type | switching strand | |
| Temperature range (unmoved) | -60 °C to 180 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
