28769 | HELUKABEL
PVC-switching wire, H05V-U, 0.75 mm², black, outer Ø 2.5 mm, 28769
Unit Price (€ / mtr.)
0.2701 € *
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
27.01 € *
Price list
Quantity
Price per unit*
100 mtr.
0.2701 €
500 mtr.
0.2475 €
1000 mtr.
0.2332 €
5000 mtr.
0.2118 €
*incl. VAT plus shipping costs
Subject to prior sale

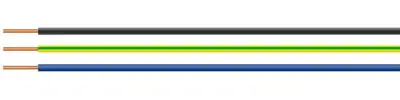

PVC single core, 28769, HELUKABEL
The 28769 is a PVC single core for installation in electrical conduits, on and under plaster, but only for signal and control circuits. Suitable for protected and fixed installation in appliances and luminaires. The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
Technical specifications
| Cable cross-section | 0.75 mm² | |
| Halogen free | No | |
| Core insulation material | PVC | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Bending radius unmoved | 9.2 mm | |
| Conductor category | CL.1 = stranded | |
| Rated voltage | 500 V | |
| Colour | black | |
| Temperature range (unmoved) | -30 °C to 80 °C | |
| Cable material | copper, bright | |
| Temperature range (active) | 5 °C to 70 °C | |
| Outer diameter | 2.5 mm |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
