28761 | HELUKABEL

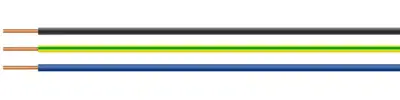

PVC-switching wire, H05V-U, 0.5 mm², black, outer Ø 2.3 mm, 28761
Unit Price (€ / mtr.)
0.2213 € *
Available in 5 Days: 3,000 mtr. - if ordered today
Total Price:
22.13 € *
Price list
Quantity
Price per unit*
100 mtr.
0.2213 €
500 mtr.
0.2035 €
1000 mtr.
0.1916 €
5000 mtr.
0.1737 €
*incl. VAT plus shipping costs
Subject to prior sale
PVC single core, 28761, HELUKABEL
The 28761 is a PVC single core for installation in electrical conduits, on and under plaster, but only for signal and control circuits. Suitable for protected and fixed installation in appliances and luminaires. The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Test voltage | 2 kV | |
| Temperature range (unmoved) | -30 °C to 80 °C | |
| Bending radius unmoved | 9.2 mm | |
| Conductor category | CL.1 = stranded | |
| Colour | black | |
| Core insulation material | PVC | |
| Cable cross-section | 0.5 mm² | |
| Cable material | copper, bright | |
| Rated voltage U0 | 300 V | |
| Temperature range (active) | 5 °C to 70 °C | |
| Rated voltage | 500 V | |
| Halogen free | No | |
| Product type | switching wire | |
| Outer diameter | 2.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
