25891 | HELUKABEL

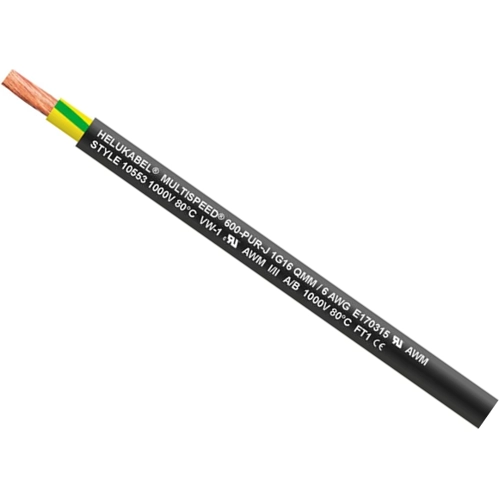

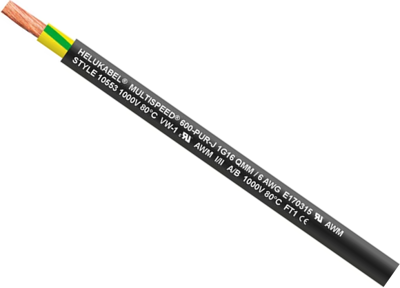

Polypropylene-drag chains conductor line, halogen free, MULTISPEED-600-PUR-J, 25 mm², black, 25891
Unit Price (€ / mtr.)
13.4351 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single core cable cable, 25891, HELUKABEL
This special drag chain cable permits extended use with extreme requirements, with free movement, without tensile stresses or forced movements. Suitable for installation in long traverse paths and with high speeds in dry, moist and wet environments as well as for outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Halogen free | Yes | |
| Colour | black | |
| Test voltage | 3 kV | |
| Cable cross-section | 25 mm² | |
| Rated voltage U0 | 600 V | |
| Material | PUR | |
| Temperature range (active) | -30 °C to 80 °C | |
| Rated voltage | 1000 V | |
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Core insulation material | polypropylene | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
