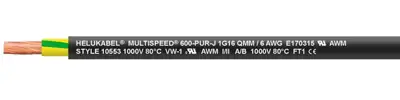

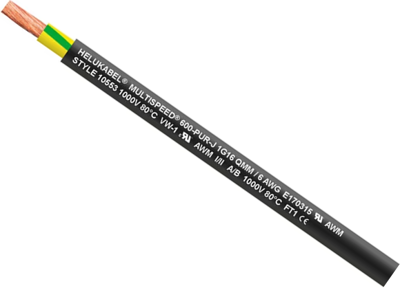

Polypropylene-drag chains conductor line, halogen free, MULTISPEED-600-PUR-J, 16 mm², black, 25890
Unit Price (€ / mtr.)
10.5910 € *
Standard delivery time from the manufacturer is: 6 Weeks
Single core cable cable, 25890, HELUKABEL
This special drag chain cable permits extended use with extreme requirements, with free movement, without tensile stresses or forced movements. Suitable for installation in long traverse paths and with high speeds in dry, moist and wet environments as well as for outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature range (unmoved) | -40 °C to 80 °C | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Product type | drag chains conductor line | |
| Material | PUR | |
| Test voltage | 3 kV | |
| Temperature range (active) | -30 °C to 80 °C | |
| Cable material | copper, bright | |
| Rated voltage | 1000 V | |
| Core insulation material | polypropylene | |
| Rated voltage U0 | 600 V | |
| Colour | black | |
| Cable cross-section | 16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
